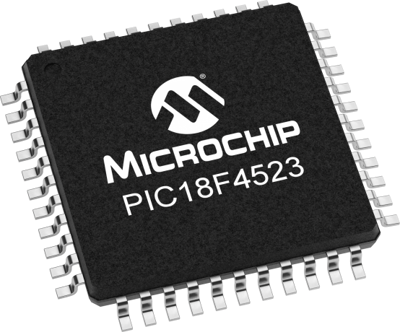

PIC18F4523-I/PT | Microchip
PIC microcontroller, 8 bit, 40 MHz, TQFP-44, PIC18F4523-I/PT
Unit Price (€ / pc.)
9.2939 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
9.29 € *
Price list
Quantity
Price per unit*
1 pcs.
9.2939 €
25 pcs.
8.5799 €
150 pcs.
8.2229 €
*incl. VAT plus shipping costs
Subject to prior sale
Microcontroller, PIC18F4523-I/PT, ATMEL
The PIC18F4523-I/PT is an enhanced flash microcontroller with 12-Bit A/D and nanoWatt Technology.
Features
- Self-programmable under software control
- Extended watchdog timer
- Single-supply In-circuit serial programming
- Programmable, 16-Level high/low-voltage
- Programmable brown-out reset
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Memory size | 32 KB | |
| max. operating temperature | 85 °C | |
| Core Size | 8 bit | |
| min. operating temperature | -40 °C | |
| Assembly | SMD | |
| Clock frequency | 40 MHz | |
| Processor core | PIC | |
| Voltage | 4.2-5.5 V | |
| Number of I/Os | 36 | |
| Data RAM Size | 1.5 KB | |
| Number of pins | 44 | |
| Version | flash | |
| Enclosure | TQFP-44 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85423190 |
| MSL | MSL 1 |
| Original Packaging | Tray with 160 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 6/8/11 |
