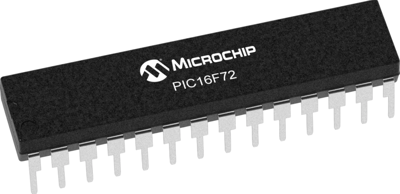

PIC16F72-I/SP | Microchip
PIC microcontroller, 8 bit, 20 MHz, SPDIP-28, PIC16F72-I/SP
Unit Price (€ / pc.)
3.6771 € *
Available in 5 Days: 125 pcs. - if ordered today
Total Price:
3.68 € *
Price list
Quantity
Price per unit*
1 pcs.
3.6771 €
25 pcs.
3.4034 €
150 pcs.
3.1773 €
*incl. VAT plus shipping costs
Subject to prior sale
8-bit Microcontroller, PIC16F72-I/SP, Microchip
This powerful (200 nanosecond instruction execution) yet easy-to-program (only 35 single word instructions) CMOS FLASH-based 8-bit microcontroller packs Microchip's powerful PIC architecture into an 28-pin package. The PIC16F72-I/SP features 5 channels of 8-bit Analog-to-Digital (A/D) converter with 2 additional timers, capture/compare/PWM function and the synchronous serial port can be configured as either 3-wire Serial Peripheral Interface (SPI) or the 2-wire Inter-Integrated Circuit (I²C) bus. All of these features make it ideal for more advanced level A/D applications in automotive, industrial, appliances and consumer applications.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Enclosure | SPDIP-28 | |
| Assembly | THT | |
| Version | flash | |
| Processor core | PIC | |
| Core Size | 8 bit | |
| Clock frequency | 20 MHz | |
| Number of I/Os | 22 | |
| Memory size | 2 KB | |
| Data RAM Size | 128 byte | |
| Protocol | I2C, SPI | |
| Voltage | 4-5.5 V | |
| Number of pins | 28 | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 85 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85423190 |
| Original Packaging | Bar with 15 pieces |
| Country of origin | TH |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | not_specified |
| Date of RoHS guidelines | 6/8/11 |
