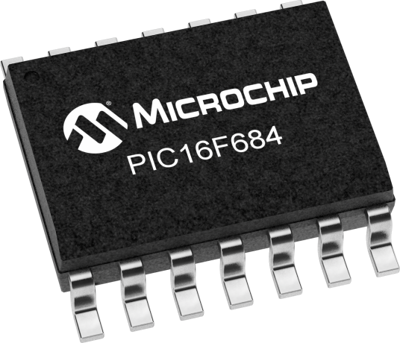

PIC16F684-I/SL | Microchip

PIC microcontroller, 8 bit, 20 MHz, SOIC-14, PIC16F684-I/SL

Microchip
default L
default S
Images may differ
Order No.:  64S1805
Manufacturer:  Microchip
Manufacturer SKU: PIC16F684-I/SL
Manufacturer series:  PIC16F684
EAN: 4099879131058
about the green icons
Total price
( 2.2729 € * / pcs.)
2.27 €
Available: 4,522 pcs.
Leadtime
Quantity
Price per unit*
1 pcs.
2.2729 €
57 pcs.
2.2134 €
285 pcs.
2.1896 €
570 pcs.
2.1777 €
*incl. VAT plus shipping costs
Show 2 variants
Description
Technical specifications
Logistics
Compliance
Download
Variations
Accessory
Description

Microcontroller, PIC16F684-I/SL, ATMEL

The PIC16F684-I/SL is a low pin-count flash microcontroller. This product offers all of the advantages of the well recognized mid-range x14 architecture with standardized features including a wide operating voltage of 2.0-5.5 volts, on-board EEPROM data memory, and nanoWatt technology.

Features

  • Precision internal oscillator
  • Power saving SLEEP mode
  • Power-on reset
  • Power-up timer
  • Programmable code protection
Technical specifications
Number of I/Os 12
Number of pins 14
Version Flash
Enclosure SOIC-14
Core Size 8 bit
max. operating temperature 85 °C
min. operating temperature -40 °C
Assembly SMD
Processor core PIC
Data RAM Size 128 byte
Voltage 2-5.5 V
Memory size 3.5 KB
Clock frequency 20 MHz
Show similar products (0)
Logistics
Country of origin TH
Customs tariff number 85423190
MSL MSL 1
Original Packaging Bar with 29 pieces
Compliance
RoHS conform Yes
Date of RoHS guidelines 6/8/11
SVHC free Yes
