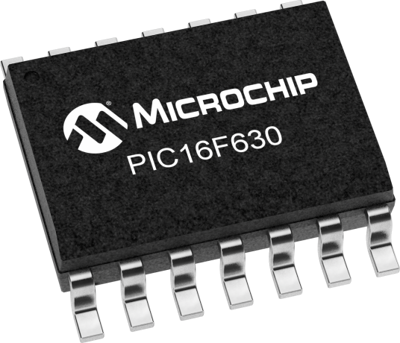

PIC16F630-I/SL | Microchip
PIC microcontroller, 8 bit, 20 MHz, SOIC-14, PIC16F630-I/SL
Unit Price (€ / pc.)
2.5585 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
2.56 € *
Price list
Quantity
Price per unit*
1 pcs.
2.5585 €
25 pcs.
2.4633 €
150 pcs.
2.2848 €
*incl. VAT plus shipping costs
Subject to prior sale
CMOS 8-bit microcontroller, PIC16F630-I/SL, ATMEL
The PIC16F630-I/SL is a CMOS Flash-based 8-bit microcontroller. This product features 1 comparator and 128 bytes of EEPROM data memory.
Features
- Internal and external oscillator options
- Low-power power-on reset
- Power-up timer
- Brown-out detect
- Watchdog timer
- Programmable code protection
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | flash | |
| Clock frequency | 20 MHz | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 85 °C | |
| Core Size | 8 bit | |
| Number of pins | 14 | |
| Number of I/Os | 12 | |
| Data RAM Size | 64 byte | |
| Enclosure | SOIC-14 | |
| Processor core | PIC | |
| Memory size | 1.75 KB | |
| Voltage | 2-5.5 V | |
| Assembly | SMD |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Bar with 57 pieces |
| MSL | MSL 1 |
| Customs tariff number | 85423190 |
| Country of origin | PH |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 6/8/11 |
| RoHS conform | Yes |
| SVHC free | Yes |
