PIC16F54-I/SO | Microchip

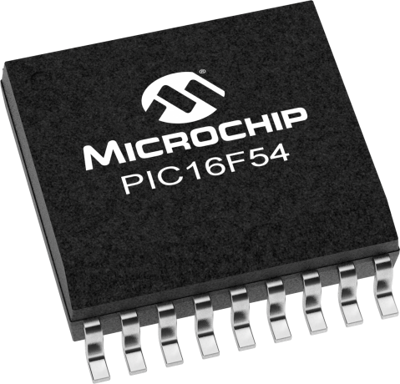

PIC microcontroller, 8 bit, 20 MHz, SOIC-18, PIC16F54-I/SO
Unit Price (€ / pc.)
1.2257 € *
Available in 5 Days: 430 pcs. - if ordered today
Total Price:
6.13 € *
Price list
Quantity
Price per unit*
5 pcs.
1.2257 €
25 pcs.
1.1305 €
150 pcs.
1.0472 €
*incl. VAT plus shipping costs
Subject to prior sale
CMOS 8-bit microcontroller, PIC16F54-I/SO, ATMEL
The PIC16F54-I/SO is a low-cost, high-performance, 8-bit, fully static, flash based CMOS microcontroller. It employs a RISC architecture with only 33 single-word/single-cycle instructions.
Features
- High performance RISC CPU
- Power-on reset
- Power-up timer
- Power saving SLEEP mode
- In-circuit serial programming
- Programmable code protection
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | flash | |
| Clock frequency | 20 MHz | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 85 °C | |
| Core Size | 8 bit | |
| Number of pins | 18 | |
| Number of I/Os | 12 | |
| Data RAM Size | 25 byte | |
| Enclosure | SOIC-18 | |
| Processor core | PIC | |
| Memory size | 768 byte | |
| Voltage | 2-5.5 V | |
| Assembly | SMD |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Bar with 42 pieces |
| MSL | MSL 1 |
| Customs tariff number | 85423190 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
