PIC16F1947-I/PT | Microchip
PIC microcontroller, 8 bit, 32 MHz, TQFP-64, PIC16F1947-I/PT
Unit Price (€ / pc.)
3.0821 € *
Standard delivery time from the manufacturer is: 3 Weeks

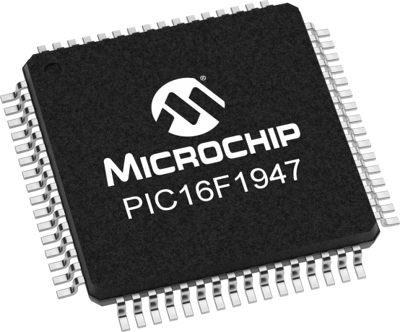

Microcontroller, PIC16F1947-I/PT, Microchip
The PIC16F1947-I/PT is a 8-bit 64-pin Flash-based CMOS Microcontroller with LCD driver and nanoWatt XLP technology. The CPU has 49 instructions. Interrupt capability includes automatic context saving. The hardware stack is 16 levels deep and has overflow and underflow reset capability. The microcontroller with direct, indirect and relative addressing modes. Two file select registers (FSRs) provides the ability to read program and data memory. The enhanced mid-range core has a 15-bit program counter capable of addressing a 32k x 14 program memory space. Accessing a location above these boundaries will cause a wrap-around within the implemented memory space. The reset vector is at 0000h and the interrupt vector is at 0004 h.
Features
- Flash program memory with self read/write capability
- 184 LCD segment drive support
- Integrated capacitive mTouch sensing module
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Memory size | 28 KB | |
| Number of I/Os | 54 | |
| Data RAM Size | 1 KB | |
| min. operating temperature | -40 °C | |
| Processor core | PIC | |
| Enclosure | TQFP-64 | |
| Number of pins | 64 | |
| Version | flash | |
| Core Size | 8 bit | |
| Voltage | 1.8-5.5 V | |
| Assembly | SMD | |
| max. operating temperature | 85 °C | |
| Clock frequency | 32 MHz |
Download
Logistics
| Property | Value |
|---|---|
| MSL | MSL 1 |
| Country of origin | CN |
| Customs tariff number | 85423190 |
| Original Packaging | Tray with 160 pieces |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
