PIC10F200T-I/OT | Microchip

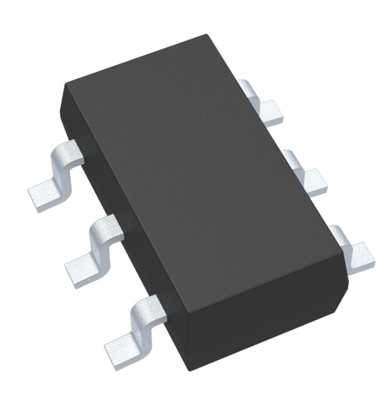

PIC10 microcontroller, 4 MHz, SOT-23-6, PIC10F200T-I/OT
Unit Price (€ / pc.)
0.7497 € *
Available in 5 Days: 2,680 pcs. - if ordered today
PIC microcontroller, PIC10F200T-I/OT, Microchip
The PIC10F200 is a low-cost, high-performance, 8-bit, fully static, Flash-based CMOS microcontroller. It employs a RISC architecture with only 33 single-word/ single-cycle instructions. All instructions are single cycle (1 µs) except for program branches, which take two cycles. It delivers performance in an order of magnitude higher than competitors in the same price category. The easy-to-use and easy to remember instruction set reduces development time significantly.
Features
- Programmable code protection
- One 8-bit timer (TMR0)
- Low power (100nA) sleep current
- Watchdog timer (WDT)
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Clock frequency | 4 MHz | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 85 °C | |
| Number of pins | 6 | |
| Number of I/Os | 4 | |
| Enclosure | SOT-23-6 | |
| Processor core | PIC10 | |
| Voltage | 2-5.5 V | |
| Assembly | SMD |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Reel with 3,000 pieces |
| MSL | MSL 1 |
| Customs tariff number | 85423190 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
