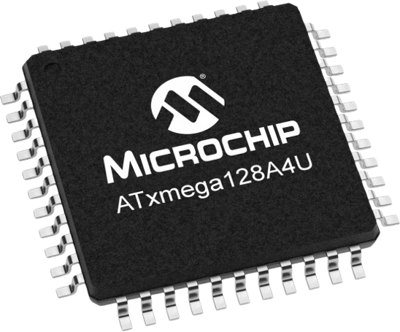

ATXMEGA128A4U-AU | Microchip
AVR microcontroller, 8/16 bit, 32 MHz, TQFP-44, ATXMEGA128A4U-AU
Unit Price (€ / pc.)
6.8068 € *
Available in 5 Days: 2,040 pcs. - if ordered today
XMEGA microcontroller, ATXMEGA128A4U-AU, ATMEL
The ATXMEGA128A4U-AU is a low power, high performance, and peripheral rich microcontroller based on the AVR enhanced RISC architecture. This device achieves CPU throughput approaching one million instructions per second, allowing the system designer to optimize power consumption versus processing speed. It comes with five software selectable power saving modes.
Features
- High performance, low power
- Non-volatile program and data memories
- I/O and packages
- High-resolution extensions on all timer/counters
- One USB device interface
- Capacitive touch buttons, sliders and wheels
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | flash | |
| Clock frequency | 32 MHz | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 85 °C | |
| Core Size | 8/16 bit | |
| Number of pins | 44 | |
| Number of I/Os | 34 | |
| Data RAM Size | 8 KB | |
| Enclosure | TQFP-44 | |
| Processor core | AVR | |
| Memory size | 128 KB | |
| Voltage | 1.6-3.6 V | |
| Assembly | SMD |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Tray with 160 pieces |
| Customs tariff number | 85423190 |
| Country of origin | TH |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
