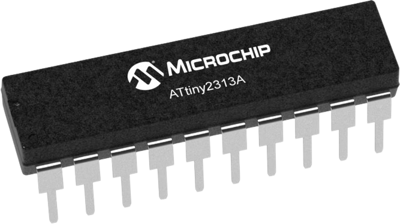

ATTINY2313A-PU | Microchip
AVR microcontroller, 8 bit, 20 MHz, DIP-20, ATTINY2313A-PU
Unit Price (€ / pc.)
1.9635 € *
Available: 45 pcs.
Available in 5 Days: 750 pcs. - if ordered today
CMOS 8-bit microcontroller, ATTINY2313A-PU, ATMEL
The ATTINY2313A-PU is a low-power CMOS 8-bit microcontroller based on the AVR enhanced RISC architecture. By executing powerful instructions in a single clock cycle, it achieves throughputs approaching 1 MIPS per MHz allowing the system designer to optimize power consumption versus processing speed.
Features
- Advanced RISC architecture
- Non-volatile program and data memories
- Programmable watchdog timer with on-chip oscillator
- On-chip analog comparator
- Enhanced power-on reset circuit
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Core Size | 8 bit | |
| Processor core | AVR | |
| max. operating temperature | 85 °C | |
| Memory size | 2 KB | |
| Data RAM Size | 128 byte | |
| Voltage | 1.8-5.5 V | |
| min. operating temperature | -40 °C | |
| Number of pins | 20 | |
| Assembly | THT | |
| Clock frequency | 20 MHz | |
| Number of I/Os | 18 | |
| Enclosure | DIP-20 | |
| Version | flash |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TH |
| Original Packaging | Bar with 18 pieces |
| Customs tariff number | 85423190 |
| MSL | MSL 1 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
