ATSAMG51G18A-UUT | Microchip

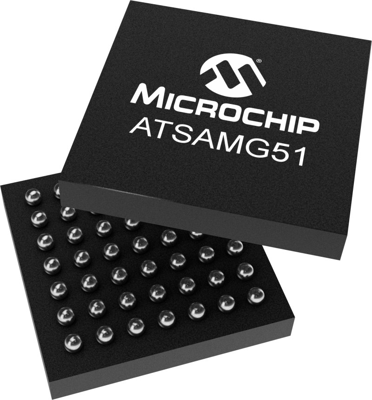

ARM Cortex M4 microcontroller, 32 bit, 48 MHz, UFBGA-49, ATSAMG51G18A-UUT
Unit Price (€ / pc.)
4.2840 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
4.28 € *
Price list
Quantity
Price per unit*
1 pcs.
4.2840 €
50 pcs.
4.1055 €
250 pcs.
3.9270 €
*incl. VAT plus shipping costs
Subject to prior sale
ARM Cortex microcontroller, ATSAMG51G18A-UUT, ATMEL
The ATSAMG51G18A-UUT is a low-power, high-performance 32-bit ARM Cortex M4 microcontroller with a floating point unit. This product is general-purpose microcontroller with the best ratio in terms of reduced power consumption, processing power and peripheral set.
Features
- Memory protection unit
- Embedded voltage regulator for single supply operation
- Power-on-reset, Brown-out detector and watchdog for safe operation
- Slow clock internal RC oscillator as permanent low-power mode device clock
- Low power modes
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Core Size | 32 bit | |
| Number of I/Os | 38 | |
| Enclosure | UFBGA-49 | |
| Number of pins | 49 | |
| max. operating temperature | 85 °C | |
| Assembly | SMD | |
| Memory size | 256 KB | |
| min. operating temperature | -40 °C | |
| Data RAM Size | 64 KB | |
| Processor core | ARM Cortex M4 | |
| Version | flash | |
| Voltage | 1.62-2 V | |
| Clock frequency | 48 MHz |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TH |
| Customs tariff number | 85423190 |
| MSL | MSL 3 |
| Original Packaging | Reel with 5,000 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
