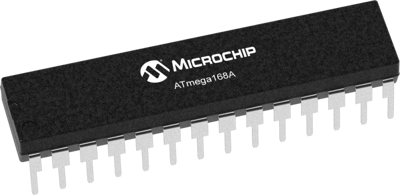

ATMEGA168A-PU | Microchip
AVR microcontroller, 8 bit, 20 MHz, DIP-28, ATMEGA168A-PU
Unit Price (€ / pc.)
3.332 € *
Available in 5 Days: 108 pcs. - if ordered today
CMOS 8-bit microcontroller, ATMEGA168A-PU, ATMEL
The ATMEGA168A-PU is a low-power CMOS 8-bit microcontroller based on the AVR enhanced RISC architecture. By executing powerful instructions in a single clock cycle, it achieves throughputs approaching 1 MIPS per MHz allowing the system designer to optimize power consumption versus processing speed.
Features
- Advanced RISC architecture
- Non-volatile program and data memories
- Real time counter with separate oscillator
- Programmable serial USART
- External and internal interrupt sources
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Core Size | 8 bit | |
| Number of I/Os | 23 | |
| Enclosure | DIP-28 | |
| Number of pins | 28 | |
| max. operating temperature | 85 °C | |
| Assembly | THT | |
| Memory size | 16 KB | |
| min. operating temperature | -40 °C | |
| Data RAM Size | 1 KB | |
| Processor core | AVR | |
| Version | flash | |
| Voltage | 1.8-5.5 V | |
| Clock frequency | 20 MHz |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | US |
| Customs tariff number | 85423190 |
| MSL | MSL 1 |
| Original Packaging | Bar with 14 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
