AT89S51-24JU | Microchip

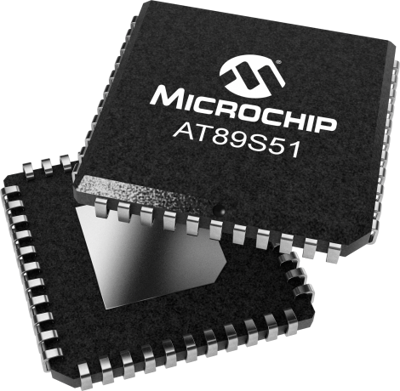

8051 microcontroller, 8 bit, 24 MHz, PLCC-44, AT89S51-24JU
Unit Price (€ / pc.)
5.7239 € *
Available in 5 Days: 96 pcs. - if ordered today
CMOS 8-bit microcontroller, AT89S51-24JU, ATMEL
The AT89S51-24JU is a low-power, high-performance CMOS 8-bit microcontroller with In-system programmable flash memory. This product provides a highly-flexible and cost-effective solution to many embedded control applications.
Features
- Three-level program memory lock
- Six interrupt sources
- Internal power-on reset
- Watchdog timer
- Dual data pointer
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | flash | |
| Clock frequency | 24 MHz | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 85 °C | |
| Core Size | 8 bit | |
| Number of pins | 44 | |
| Number of I/Os | 32 | |
| Data RAM Size | 128 byte | |
| Enclosure | PLCC-44 | |
| Processor core | 8051 | |
| Memory size | 4 KB | |
| Voltage | 4-5.5 V | |
| Assembly | SMD |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Bar with 27 pieces |
| MSL | MSL 2 |
| Customs tariff number | 85423190 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
