AT89C51RD2-RLTUM | Microchip

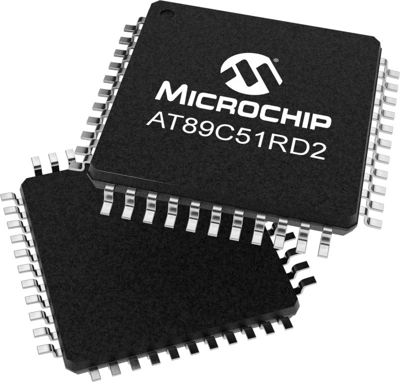

80C51 microcontroller, 8 bit, 60 MHz, VQFP-44, AT89C51RD2-RLTUM
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
10.0912 € *
Available in 5 Days: 440 pcs. - if ordered today
Total Price:
50.46 € *
Price list
Quantity
Price per unit*
5 pcs.
10.0912 €
25 pcs.
9.6985 €
100 pcs.
9.3058 €
*incl. VAT plus shipping costs
Subject to prior sale
CMOS 8-bit microcontroller, AT89C51RD2-RLTUM, ATMEL
The AT89C51RD2-RLTUM is a high performance CMOS Flash single chip 8-bit microcontroller. It contains a 64-Kbyte Flash memory block for code and for data. This product has 2 software-selectable modes of reduced activity and an 8-bit clock prescaler for further reduction in power consumption.
Features
- Integrated power monitor
- High-speed architecture
- Internal power-on reset
- Hardware watchdog timer
- Dual data pointer
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Enclosure | VQFP-44 | |
| Assembly | SMD | |
| Version | flash | |
| Processor core | 80C51 | |
| Core Size | 8 bit | |
| Clock frequency | 60 MHz | |
| Number of I/Os | 34 | |
| Memory size | 64 KB | |
| Data RAM Size | 2 KB | |
| Voltage | 2.7-5.5 V | |
| Number of pins | 44 | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 85 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85423190 |
| Country of origin | PH |
| Original Packaging | Tray with 160 pieces |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
