AT89C51RB2-3CSUM | Microchip

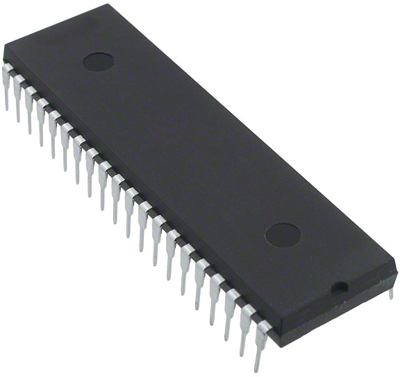

Microcontroller, 60 MHz, PDIP-40, AT89C51RB2-3CSUM
Unit Price (€ / pc.)
8.7346 € *
Available in 5 Days: 30 pcs. - if ordered today
Microcontroller, AT89C51RB2-3CSUM, Microchip
High-performance, 8-bit microcontroller with 16KB flash. It retains all features of the 80C52 with 256 Bytes of internal RAM, a 9-source 4-level interrupt controller, and three timer/counters. It features a programmable counter array, an XRAM of 1024 bytes, hardware watchdog timer, keyboard interface, SPI interface, versatile serial channel that facilitates multiprocessor communication (EUART), and a speed improvement mechanism (X2 mode). Implementing an external brown-out is recommended to prevent any flash/EEPROM corruption during power-on or power-off.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Data RAM Size | 1.25 KB | |
| Assembly | THT | |
| Clock frequency | 60 MHz | |
| min. operating temperature | -40 °C | |
| Number of I/Os | 32 | |
| Enclosure | PDIP-40 | |
| Voltage | 2.7-5.5 V | |
| max. operating temperature | 85 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85423190 |
| Original Packaging | Bar with 10 pieces |
| MSL | MSL 3 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
