AT89C51ED2-SMSUM | Microchip
80C51 microcontroller, 8 bit, 60 MHz, PLCC-68, AT89C51ED2-SMSUM
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
13.9230 € *
Available in 5 Days: 140 pcs. - if ordered today
Total Price:
69.62 € *
Price list
Quantity
Price per unit*
5 pcs.
13.9230 €
25 pcs.
13.3875 €
100 pcs.
12.8520 €
*incl. VAT plus shipping costs
Subject to prior sale

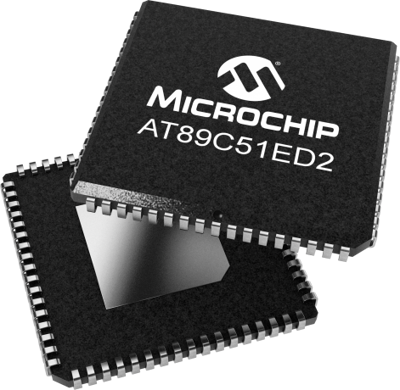

CMOS 8-bit microcontroller, AT89C51ED2-SMSUM, ATMEL
The AT89C51ED2-SMSUM is a high performance CMOS Flash single chip 8-bit microcontroller. It contains a 64-Kbyte Flash memory block for code and for data. This product has 2 software-selectable modes of reduced activity and an 8-bit clock prescaler for further reduction in power consumption.
Features
- Integrated power monitor
- High-speed architecture
- Dual data pointer
- SPI interface
- Hardware watchdog timer
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Enclosure | PLCC-68 | |
| Assembly | SMD | |
| Version | flash | |
| Processor core | 80C51 | |
| Core Size | 8 bit | |
| Clock frequency | 60 MHz | |
| Number of I/Os | 50 | |
| Memory size | 64 KB | |
| Data RAM Size | 2 KB | |
| Voltage | 2.7-5.5 V | |
| Number of pins | 68 | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 85 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85423190 |
| MSL | MSL 3 |
| Original Packaging | Bar with 19 pieces |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
