AT89C5131A-TISUL | Microchip

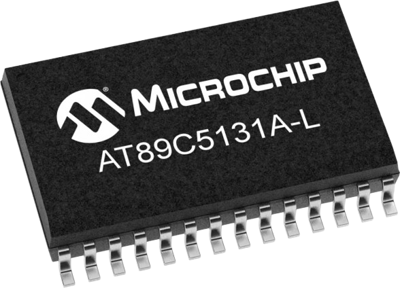

80C51 microcontroller, 8 bit, 48 MHz, SOIC-28, AT89C5131A-TISUL
Unit Price (€ / pc.)
14.8512 € *
Available in 5 Days: 122 pcs. - if ordered today
Microcontroller, AT89C5131A-TISUL, ATMEL
The AT89C5131A-TISUL is a high-performance flash single-chip 8-bit microcontroller with full speed USB functions. This product has two software-selectable modes of reduced activity for further reduction in power consumption.
Features
- Dual data pointer
- Full-duplex enhanced UART
- Three 16-bit timer/counters
- Integrated power monitor
- SPI interface
Technical specifications
| Filter | Property | Value |
|---|---|---|
| max. operating temperature | 85 °C | |
| Enclosure | SOIC-28 | |
| Memory size | 32 KB | |
| Voltage | 2.7-3.6 V | |
| Clock frequency | 48 MHz | |
| Assembly | SMD | |
| Processor core | 80C51 | |
| Version | flash | |
| min. operating temperature | -40 °C | |
| Data RAM Size | 1.25 KB | |
| Core Size | 8 bit | |
| Number of I/Os | 18 | |
| Number of pins | 28 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85423190 |
| MSL | MSL 3 |
| Original Packaging | Bar with 27 pieces |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
