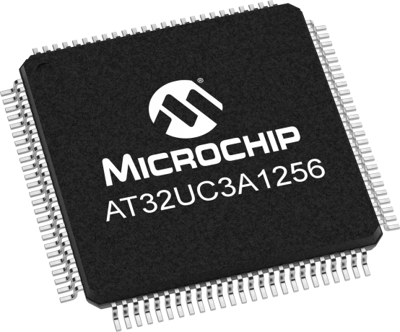

AT32UC3A1256-AUT | Microchip
AVR microcontroller, 32 bit, 66 MHz, TQFP-100, AT32UC3A1256-AUT
Unit Price (€ / pc.)
13.1138 € *
Available in 5 Days: 27 pcs. - if ordered today
AVR microcontroller, AT32UC3A1256-AUT, ATMEL
The AT32UC3A1256-AUT is a high-performance 32-bit RISC microprocessor core, that is designed for cost-sensitive embedded applications, with particular emphasis on low power consumption, high code density and high performance. This product incorporates on-chip flash and SRAM memories for secure and fast access.
Features
- Multi-hierarchy bus system
- Internal high-speed flash
- Internal high-speed SRAM
- Interrupt controller
- On-chip debug system
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Core Size | 32 bit | |
| Number of I/Os | 69 | |
| Enclosure | TQFP-100 | |
| Number of pins | 100 | |
| max. operating temperature | 85 °C | |
| Assembly | SMD | |
| Memory size | 256 KB | |
| min. operating temperature | -40 °C | |
| Data RAM Size | 64 KB | |
| Processor core | AVR | |
| Version | flash | |
| Voltage | 1.65-3.6 V | |
| Clock frequency | 66 MHz |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85423190 |
| MSL | MSL 3 |
| Original Packaging | Tray with 90 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
