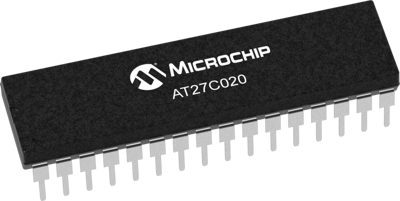

AT27C020-55PU | Microchip
EEPROM memorie, 2 Mbit, PDIP-32, Microchip AT27C020-55PU
Unit Price (€ / pc.)
7.8302 € *
Standard delivery time from the manufacturer is: On Request
EPROM, AT27C020-55PU, ATMEL
The AT27C020-55PU is a low-power, high-performance, 2,097,152-bit, one-time programmable, read-only memory organized as 256K by 8 bits. This product has additional features to ensure high quality and efficient production use.
Features
- Fast read access time
- Low-power CMOS operation
- High-reliability
- Rapid programming algorithm
- Integrated product identification code
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Access time | 55 s | |
| max. operating temperature | 85 °C | |
| Technology | EEPROM | |
| Memory size | 2 Mbit | |
| Voltage | 4.5-5.5 V | |
| min. operating temperature | -40 °C | |
| Assembly | THT | |
| Enclosure | PDIP-32 |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Bar with 12 pieces |
| Customs tariff number | 85423290 |
| MSL | MSL 1 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
