25LC512-I/SN | Microchip

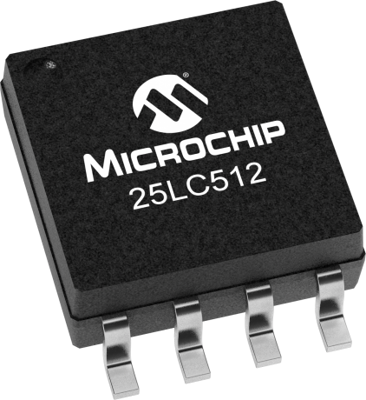

EEPROM, 512 kbit, SOIC-8, Microchip 25LC512-I/SN
Unit Price (€ / pc.)
1.1424 € *
Standard delivery time from the manufacturer is: 4 Weeks
EEPROM, 25LC512-I/SN, ATMEL
The 25LC512-I/SN is a 512 Kbit serial EEPROM memory with byte-level and page-level EEPROM functions. This product also features page, sector and chip erase functions typically associated with flash-based products. The Communication to the device can be paused via the hold pin (HOLD).
Features
- Low-power CMOS technology
- Electronic signature for device ID
- Self-timed erase and write cycles
- RoHS compliant
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Enclosure | SOIC-8 | |
| Assembly | SMD | |
| Memory size | 512 kbit | |
| Voltage | 2.5-5.5 V | |
| Access time | 50 s | |
| Clock frequency | 20 MHz | |
| Technology | EEPROM | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 85 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85423990 |
| MSL | MSL 1 |
| Original Packaging | Bar with 100 pieces |
| Country of origin | US |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 6/8/11 |
