24LC512T-I/SM | Microchip

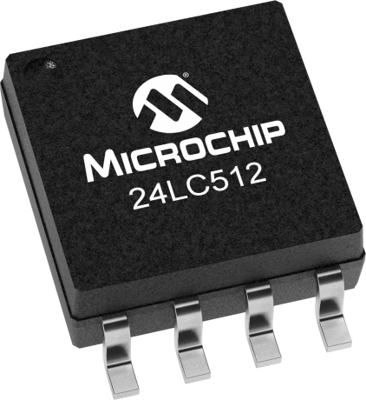

EEPROM, 512 kbit, SOIC-8, Microchip 24LC512T-I/SM
Unit Price (€ / pc.)
1.9040 € *
Available: 284 pcs.
Total Price:
1.90 € *
Price list
Quantity
Price per unit*
1 pcs.
1.9040 €
25 pcs.
1.6184 €
100 pcs.
1.4875 €
250 pcs.
1.4161 €
2100 pcs.
1.2138 €
*incl. VAT plus shipping costs
Subject to prior sale
EEPROM, 24LC512T-I/SM, ATMEL
The 24LC512T-I/SM is a 64K x 8 serial electrically erasable PROM, capable of operation across a broad voltage. It has been developed for advanced, low-power applications such as personal communications and data acquisition.
Features
- Low-power CMOS technology
- Cascadable up to eight devices
- Schmitt trigger inputs for noise suppression
- Self-timed Erase/Write cycle
- Hardware write-protect
- Pb-Free and RoHS compliant
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Enclosure | SOIC-8 | |
| Assembly | SMD | |
| Memory size | 512 kbit | |
| Voltage | 2.5-5.5 V | |
| Access time | 900 s | |
| Clock frequency | 400 kHz | |
| Technology | EEPROM | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 85 °C |
Download
Logistics
| Property | Value |
|---|---|
| MSL | MSL 1 |
| Customs tariff number | 85423275 |
| Country of origin | QU |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 6/8/11 |
