24LC02BT-E/OT | Microchip

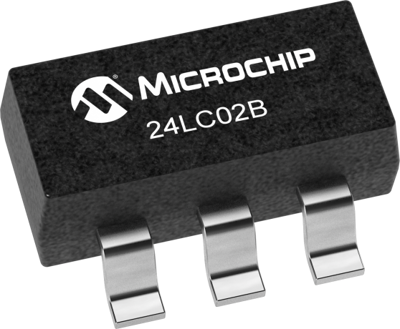

EEPROM, 2 kbit, SOT-23, Microchip 24LC02BT-E/OT
Unit Price (€ / pc.)
0.5117 € *
Standard delivery time from the manufacturer is: 5 Weeks
EEPROM, 24LC02BT-E/OT, ATMEL
The 24LC02BT-E/OT is a 2 Kbit electrically erasable PROM. The device is organized as one block of 256 x 8-bit memory with a 2-wire serial interface.
Features
- Low-power CMOS technology
- 2-Wire serial interface
- Schmitt trigger inputs for noise suppression
- Self-timed Erase/Write cycle
- Hardware write-protect
- Pb-Free and RoHS compliant
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Enclosure | SOT-23 | |
| Assembly | SMD | |
| Memory size | 2 kbit | |
| Voltage | 2.5-5.5 V | |
| Access time | 900 s | |
| Clock frequency | 400 kHz | |
| Technology | EEPROM | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 125 °C |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TH |
| Original Packaging | Reel with 3,000 pieces |
| MSL | MSL 1 |
| Customs tariff number | 85423990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 6/8/11 |
| RoHS conform | Yes |
| SVHC free | Yes |
