MCP23S17T-E/SS | Microchip

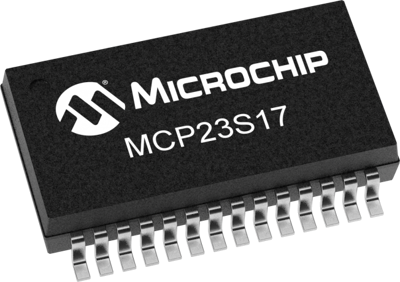

16-Bit I/O Expander, SSOP-28, Microchip MCP23S17T-E/SS
Order No.: 41S4124
EAN: 4099879086839
MPN:
MCP23S17T-E/SS
Unit Price (€ / pc.)
2.1658 € *
Available: 6 pcs.
Interface, MCP23S17T-E/SS, ATMEL
The MCP23S17T-E/SS is a device that provides 16-bit, general purpose parallel I/O expansion for SPI applications. This product consists of multiple 8-bit configuration registers for input, output and polarity selection.
Features
- 16-Bit remote bidirectional I/O port
- High-speed SPI interface
- Three hardware address pins to allow up to eight devices on the bus
- Configurable interrupt output pins
- External reset input
Technical specifications
| Filter | Property | Value |
|---|---|---|
| max. operating temperature | 125 °C | |
| Product type | 16-Bit I/O Expander | |
| Assembly | SMD | |
| min. operating temperature | -40 °C | |
| Enclosure | SSOP-28 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | US |
| Original Packaging | Reel with 2,100 pieces |
| MSL | MSL 1 |
| Customs tariff number | 85423390 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 6/8/11 |
| RoHS conform | Yes |
| SVHC free | Yes |
