MS3V–T1R 32.768KHZ 7PF +/-20PPM TA QC | Micro Crystal

Clock quartz, 32.768 kHz, 12.5 pF, ±20 ppm, 50 kΩ, SMD, MS3V–T1R 32.768KHZ 7PF +/-20PPM TA QC

Order No.: 77D980
EAN: 4099879148766
MPN:
MS3V–T1R 32.768KHZ 7PF +/-20PPM TA QC
Micro Crystal

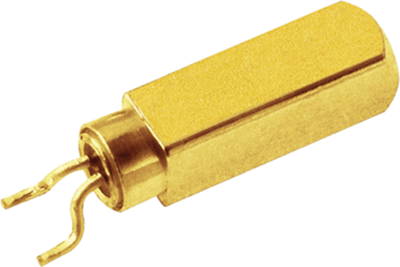

MS3V–T1R 32.768KHZ 7PF +/-20PPM TA QC Micro Crystal Quartze Image 1
MS3V–T1R 32.768KHZ 7PF +/-20PPM TA QC Micro Crystal Quartze Image 2
Image may differ
Print
Key Specification:
Frequency 32.768 kHz
Tolerance ±20 ppm
Load Capacity 12.5 pF
ESR (Equivalent Series Resistance) 50 kΩ
Download Datasheet Technical specifications
Unit Price (€ / pc.)
0.2999 € *
Available: 142 pcs.
Total Price:
1.50 € *
*incl. VAT plus shipping costs
Subject to prior sale
5 pcs.
0.2999 €
Description
Technical specifications
Download
Logistics
Compliance

SMD tuning fork crystals, type Micro Crystal MS3V-T1R.

Frequency tolerance: ±20 ppm at +25 °C. Operating temperatures: –40 to +85 °C. Insulation resistance: 500 Mohm. Aging: ±3.0 ppm/year.


Technical attributes (frequency, load capacitance): 32,768 kHz, 7.0 pF
Technical specifications
Width 1.2 mm
Load Capacity 12.5 pF
Frequency 32.768 kHz
Length 2 mm
max. operating temperature 85 °C
Assembly SMD
min. operating temperature -40 °C
Number of connection pads 2
Height 0.6 mm
Tolerance ±20 ppm
ESR (Equivalent Series Resistance) 50 kΩ
Articles of same specification 0
Logistics
Country of origin CH
Customs tariff number 85416000
Original Packaging Reel with 2,000 pieces
Compliance
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
