MIC5205-3.3YM5 | Micrel Semiconductor

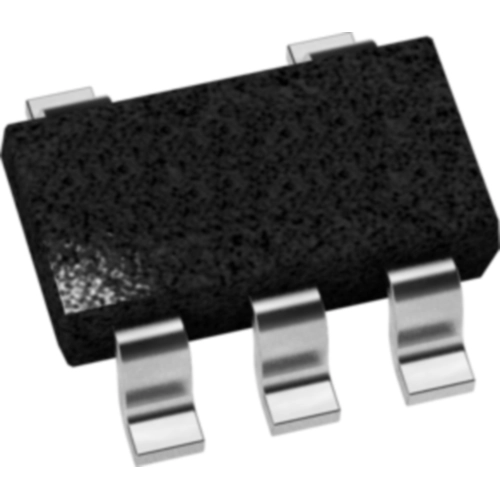

Voltage regulator, 3.3 VDC, 150 mA, positive, SOT-23, MIC5205-3.3YM5
Order No.: 41S7386
EAN: 4099879098825
MPN:
MIC5205-3.3YM5
Voltage regulator, MIC5205-3.3YM5, MICREL
The MIC5205-3.3YM5 is a efficient linear voltage regulator with ultra low-noise output, very low dropout voltage and very low ground current. This device offers better than 1% initial accuracy. Designed especially for hand-held, battery-powered device, it includes a CMOS or TTL compatible enable/shutdown control input. When shut down, power consumption drops nearly to zero. Regulator ground current increases only slightly in dropout, further prolonging battery life.
Features
- High output voltage accuracy
- Extremely tight load and line regulation
- Current and thermal limiting
- Low dropout voltage
Applications
- Laptop, notebook, and palmtop computers
- Battery-powered equipment
- PCMCIA VCC and VPP regulation/switching
- SMPS post-regulator/DC-to-DC modules
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Assembly | SMD | |
| Enclosure | SOT-23 | |
| Version | fixed | |
| Number of Regulators | 1 | |
| Input voltage AC | 2.5-16 V | |
| Output voltage DC | 3.3 VDC | |
| Output current | 150 mA | |
| Polarity | positive | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 125 °C |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Reel with 3,000 pieces |
| Country of origin | US |
| Customs tariff number | 85423390 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 6/8/11 |
| SVHC free | Yes |
| RoHS conform | Yes |
