MIC4420ZN | Micrel Semiconductor

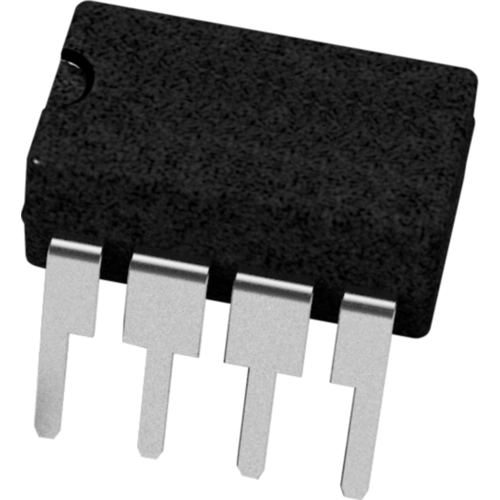

Low-side MOSFET driver, PDIP-8, Micrel Semiconductor MIC4420ZN
Order No.: 41S7346
EAN: 4099879102782
MPN:
MIC4420ZN
Low-Side MOSFET driver, MIC4420ZN, MICREL
The MIC4420ZN is a driver tough, efficient, and easy to use. This driver is a non-inverting driver. It is capable of 6A (peak) output and can drive the largest MOSFETs with an improved safe operating margin.
Features
- CMOS construction
- Latch-Up protected
- High peak output current
- High capacitive load drive
- Low delay time
Applications
- Switch mode power supplies
- Motor controls
- Pulse transformer driver
- Class-D switching amplifiers
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Enclosure | PDIP-8 | |
| Assembly | THT | |
| Number of channels | 1 | |
| Version | low-side | |
| Output voltage DC | 4.5-18 V | |
| Input voltage | 2.4 V |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Bar with 50 pieces |
| Country of origin | BE |
| Customs tariff number | 85423390 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 6/8/11 |
| SVHC free | Yes |
| RoHS conform | Yes |
