31017107 | METZ CONNECT

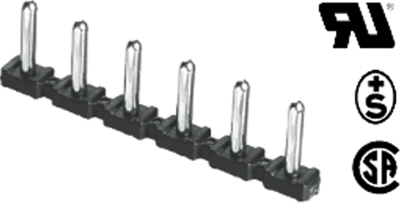

Pin header for connection terminal, 31017107

Order No.: 09H6330
EAN: 4099891042110
MPN:
31017107
RIA
31017107 METZ CONNECT Terminals Accessories
Image may differ
Unit Price (€ / pc.)
1.1543 € *
Available: 748 pcs.
Leadtime: 2 Weeks **
Total Price:
11.54 € *
Price list
Quantity
Price per unit*
10 pcs.
1.1543 €
50 pcs.
1.0115 €
250 pcs.
0.8687 €
1000 pcs.
0.7735 €
2500 pcs.
0.7021 €
*incl. VAT plus shipping costs
**Subject to prior sale

Pin headers, series PLUGCON, type 017.

1.0 mm solder pins (for 1.3 mm hole), developed for THR; Contact: CuZn. Housing: polyamide 46 (UL 94 V-0). Color: black. Rated voltage (overvoltage category/degree of soiling/rated surge voltage): 250 V (III/3/2.5 kV), 500 V (III/2/4.0 kV), 500 V (II/2/2.5 kV). Rated voltage (UL, CSA/SEV): 300 V/250 V, rated current (UL, CSA/SEV): 15 A/10 A. IEC climate category: 40/125/56. Insulation coordination to DIN EN 60664-1. Smallest air gap/leakage distance: min. 3.7 mm. Insulation class: CTI 400. Certifications: UL (E121004), CSA (File 85368), SEV.

Technical attributes (type, number of poles, grid, dimension L): 31017107, 7–pole, 34.8 mm

Technical specifications
Suitable for connection terminal
Product type pin header
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
RoHS conform Yes
Substance description Lead
SVHC free No
Date of RoHS guidelines 3/31/15
