AST0250304 | METZ CONNECT

PCB terminal, 3 pole, pitch 5 mm, AWG 28-14, 12 A, spring-clamp connection, gray, AST0250304

Order No.: 09H6072
EAN: 4099891038960
MPN:
AST0250304
RIA
Series: SPRINGCON
METZ CONNECT
default L
front L

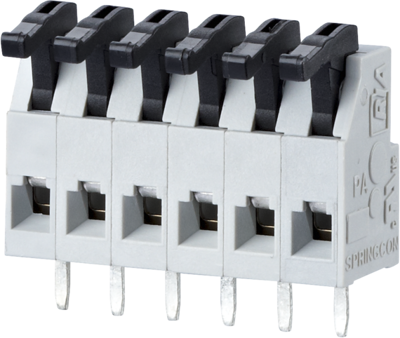

Image may differ
Unit Price (€ / pc.)
1.3685 € *
Available: 2,267 pcs.
Leadtime: On Request **
Total Price:
1.37 € *
Price list
Quantity
Price per unit*
1 pcs.
1.3685 €
100 pcs.
1.2138 €
250 pcs.
1.0472 €
*incl. VAT plus shipping costs
**Subject to prior sale

PCB terminal, AST0250304, METZ

It is suitable for solid wires and multi-stranded wires with a nominal cross section of 0.08 - 2.5 mm² and permits direct clamping without preconditioning of the conductor, direct clamping with splice protection and indirect clamping via an end sleeve or pin cable lug.

Features

  • Spring clamp terminal block, solderable
  • Direction of connection 90°
  • Eccentric lever
  • Degree of protection: IP20
Technical specifications
Connection spring-clamp connection
AWG cross-section AWG 28-14
Colour gray
Cable cross-section 0.08-1.0 mm²
Rated voltage 250 V
Rated current 12 A
Pin number 3 pole
Grid 5 mm
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
