AST0240604 | METZ CONNECT

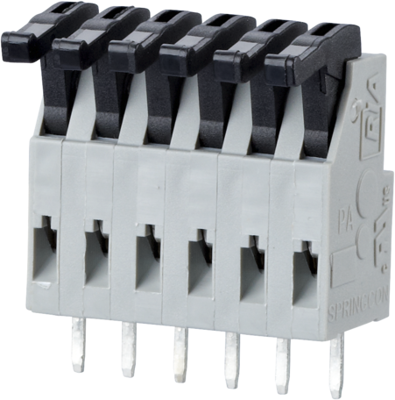

PCB terminal, 6 pole, pitch 3.81 mm, AWG 28-20, 6 A, spring-clamp connection, gray, AST0240604
Unit Price (€ / pc.)
1.3923 € *
Standard delivery time from the manufacturer is: 3 Weeks
PCB terminal, AST0240604, METZ
It is suitable for solid wires and multi-stranded wires with a nominal cross section of 0.08 - 2.5 mm² and permits direct clamping without preconditioning of the conductor, direct clamping with splice protection and indirect clamping via an end sleeve or pin cable lug.
Features
- Spring clamp terminal block, solderable
- Direction of connection 90°
- Eccentric lever
- Degree of protection: IP20
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 28-20 | |
| Colour | gray | |
| Connection | spring-clamp connection | |
| Rated voltage | 200 V | |
| Cable cross-section | 0.08-0.5 mm² | |
| Assembly | THT | |
| Pin number | 6 pole | |
| Grid | 3.81 mm | |
| Rated current | 6 A |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
