ASP0510606 | METZ CONNECT
Terminal block, 6 pole, pitch 2.5 mm, angled, green, ASP0510606
No longer available from manufacturer
Unit Price (€ / pc.)
4.2126 € *
Available: 960 pcs.
Total Price:
4.21 € *
Price list
Quantity
Price per unit*
1 pcs.
4.2126 €
10 pcs.
3.7009 €
100 pcs.
3.2606 €
250 pcs.
3.1297 €
1000 pcs.
2.9155 €
*incl. VAT plus shipping costs
Subject to prior sale

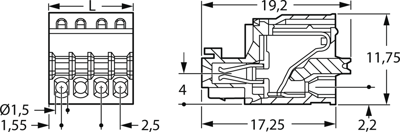

Spring clamp terminal block, ASP0510606, METZ
Spring clamp terminal block, pluggable, with a centerline of 5.00 mm, vertical connection direction at 0°, designed to fit without losing poles, black in color, featuring an eccentric lever, and with wire entry on the uncodable side parallel to the plug direction.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | terminal block | |
| Contact type | pin | |
| Pin number | 6 pole | |
| Grid | 2.5 mm | |
| Connection | spring connection | |
| Orientation | angled | |
| Type of locking | No | |
| contact surface | tin-plated | |
| Rated voltage | 130 V | |
| Rated current | 5 A | |
| Additional parts | equipped | |
| Number of rows | 1 | |
| Breakable | No | |
| Colour | green |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Electrical equipment take-back |  |
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
