MI 3299 | METREL
Demonstration board, for demonstration purposes of isolation diagnoses, CAT I, METREL MI 3299
Order No.: 27K1338
EAN: 4099891472658
MPN:
MI 3299
20991569
Unit Price (€ / pc.)
8,211.00 € *
Standard delivery time from the manufacturer is: On Request
Demoboard, MI 3299, Metrel

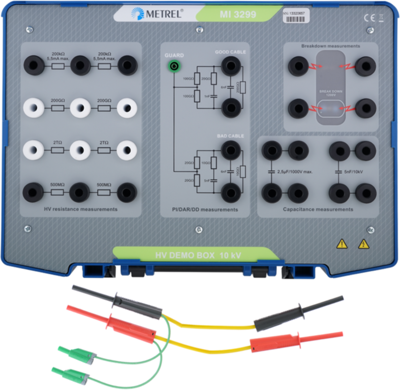

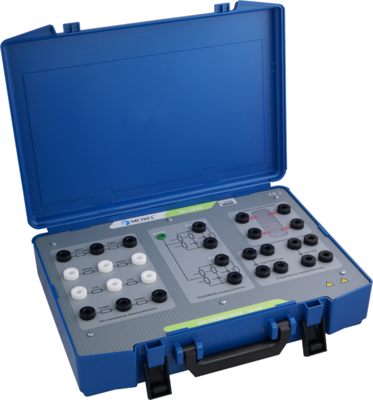

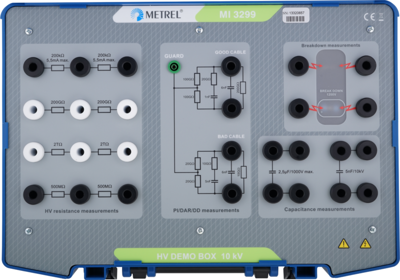

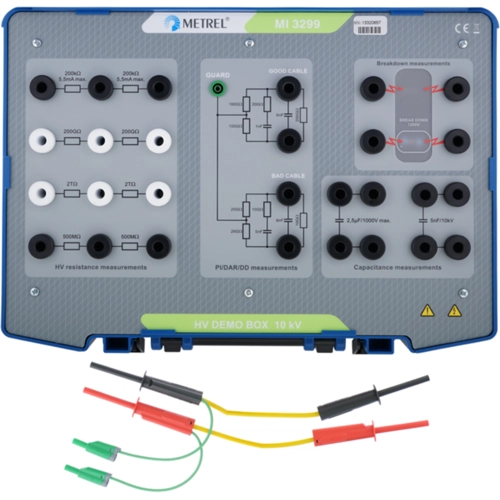

The MI 3299 10 kV high voltage demonstration box is designed for demonstration purposes in high voltage insulation diagnostics. It simulates typical electrical insulation commonly found in industrial environments. It is equipped with high quality resistors in different ranges, high voltage capacitors and a discharge device to simulate a breakdown phenomenon in gases. In addition, measurements of polarization index (PI), dielectric discharge (DD) and dielectric absorption ratio (DAR) can be demonstrated. Equipped with all these functions, the demonstration box is also well suited for basic calibration of DC high-voltage insulation resistance meters.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | demonstration board | |
| Version | for demonstration purposes of isolation diagnoses | |
| Surge voltage category | CAT I | |
| Insulation resistance Max | 2000 Ω | |
| Degree of protection (IP) | IP20 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | SI |
| MSL | MSL 1 |
| Customs tariff number | 90230010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
