MI 3201 | METREL

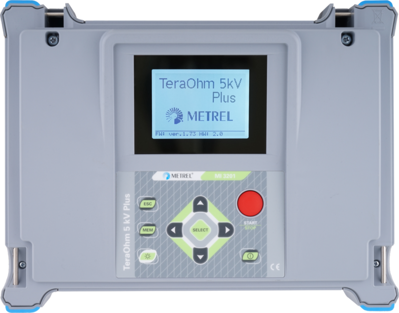

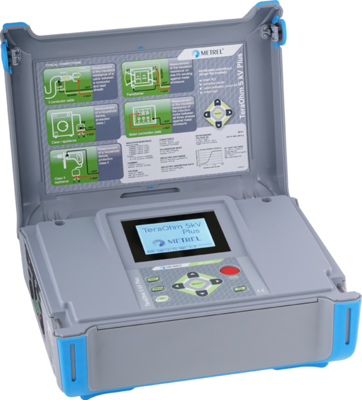

Insulation tester, LCD display, CAT IV 600 V, METREL MI 3201
Order No.: 27K1323
EAN: 4099891472641
MPN:
MI 3201
20991530
Unit Price (€ / pc.)
2,856.00 € *
Standard delivery time from the manufacturer is: 5 Weeks
Isolation tester, MI 3201, Metrel

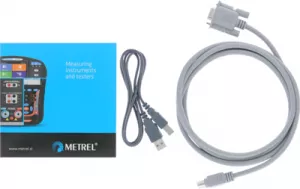

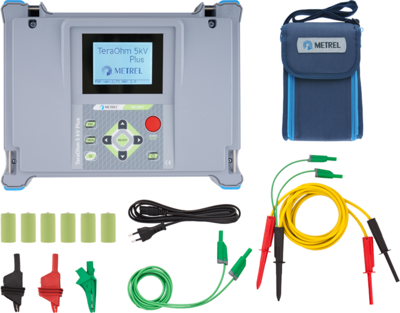

The new MI 3201 TeraOhm 5 kV Plus insulation tester is a portable instrument for measuring insulation resistance using high DC test voltages up to 5 kV. TeraOhm 5 kV Plus allows insulation resistance measurements up to 10 TΩ, step voltage testing, withstand voltage testing, PI, DD and DAR calculation and capacitance measurement. Real-time R(t) curve can be displayed on the large LCD screen. Results can be stored and downloaded to a computer via USB or RS232 connection using the optional HVLink PRO software. The high quality instrument, shielded test leads and quality accessories included in the standard set allow insulation testing to be performed quickly and effectively.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Insulation resistance Min | 5 kΩ | |
| Max measured value DC voltage | 600 V | |
| Surge voltage category | CAT IV 600 V | |
| Degree of protection (IP) | IP40 | |
| Batteries | NiMH | |
| Product type | insulation tester | |
| Version | LCD display | |
| Max measured value AC voltage | 600 V | |
| Insulation resistance Max | 10000 Ω |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 90303370 |
| MSL | MSL 1 |
| Country of origin | SI |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
