MI 3125 BT | METREL

Installation tester, RCD tests, CAT III 600 V, CAT IV 300 V, METREL MI 3125 BT

Order No.: 27K1318
EAN: 3831063415084
MPN:
MI 3125 BT
20991607

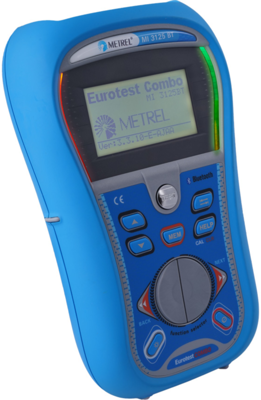

MI 3125 BT METREL VDE testers, Installation testers, Insulation testers Image 1

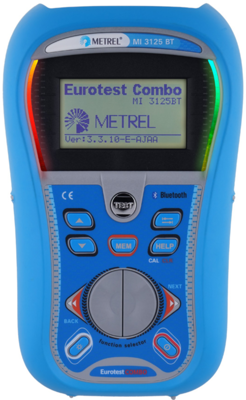

MI 3125 BT METREL VDE testers, Installation testers, Insulation testers Image 2

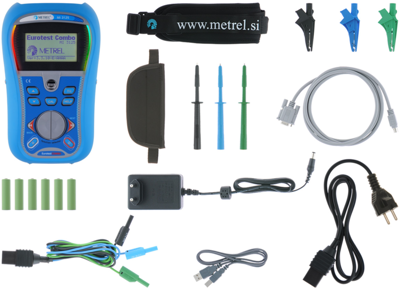

MI 3125 BT METREL VDE testers, Installation testers, Insulation testers Image 3
Image may differ
Unit Price (€ / pc.)
1,188.81 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
1,188.81 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
1,188.81 €

Installation tester Eurotest Combo, MI 3125 BT, Metrel

The MI 3125BT EurotestCOMBO performs all necessary tests for installation safety testing on TT and TN systems. The large backlit graphic display provides easy reading of results, indications, measurement parameters and messages. Two LED pass/fail indicators are located on either side of the LCD display. MI 3125BT EurotestCOMBO includes built-in characteristics of fuses and RCDs (including B-type) for evaluation of test results. Each test has its own individual help screen describing how to connect the instrument into the installation and how to perform a measurement. All results can be quickly stored and referenced on the instrument and then downloaded to the computer via the EuroLink PRO software, included in the standard set, for post-test evaluation and report generation. MI 3125BT EurotestCOMBO performs continuity, insulation, RCD, loop, line, voltage, frequency, earth resistance and phase sequence tests required by EN 61557 standard.

Technical specifications
Degree of protection (IP) IP40
Batteries AA
Surge voltage category CAT III 600 V, CAT IV 300 V
Max measured value DC voltage 1000 V
Max measured value AC voltage 500 V
Product type installation tester
Version RCD tests
Insulation resistance Max 999 MΩ
Logistics
MSL MSL 1
Customs tariff number 90303370
Country of origin SI
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
