MI 3121 | METREL

Insulation tester, LCD display, CAT III 600 V, CAT IV 300 V, METREL MI 3121

Order No.: 27K1315
EAN: 3831063414537
MPN:
MI 3121
20991534

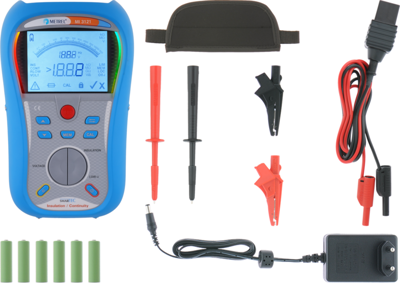

MI 3121 METREL VDE testers, Installation testers, Insulation testers Image 1

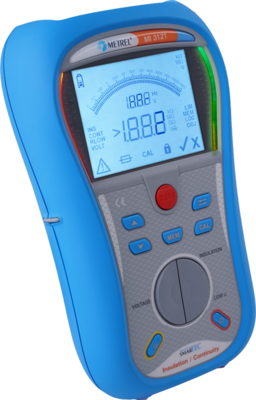

MI 3121 METREL VDE testers, Installation testers, Insulation testers Image 2

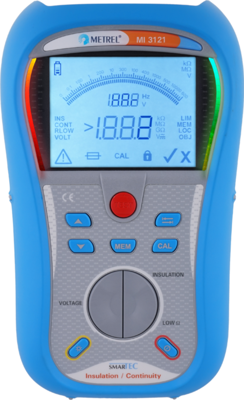

MI 3121 METREL VDE testers, Installation testers, Insulation testers Image 3
Image may differ
Unit Price (€ / pc.)
690.20 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
690.20 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
690.20 €

Isolation tester, MI 3121, Metrel

The MI 3121 SMARTEC Insulation / Continuity is a test instrument for continuity testing of electrical installations. With an analog and digital display of results, the instrument ensures accurate measurements up to 2000 Ω on continuity and up to 30 GΩ on insulation function. Configurable limits allow PASS / FAIL evaluation of test results, accompanied by bright red and green indicator lights for convenient use even in the dark. The MI 3121 is equipped with a built-in charger and has a magnetic holder to keep hands free for testing. All results can be quickly stored on the instrument and downloaded after testing via the optional A 1291 EuroLink PRO or A 1290 EuroLink PRO Plus software for evaluation and professional reporting. The MI 3121 SMARTEC Insulation / Continuity performs continuity tests, insulation AC voltage and frequency measurements.

Technical specifications
Filter Property Value
Degree of protection (IP) IP40
Batteries AA
Surge voltage category CAT III 600 V, CAT IV 300 V
Max measured value DC voltage 25 V
Product type insulation tester
Version LCD display
Insulation resistance Max 30 Ω
Logistics
Property Value
MSL MSL 1
Customs tariff number 90303370
Country of origin SI
Compliance
Property Value
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
