MI 3088 | METREL

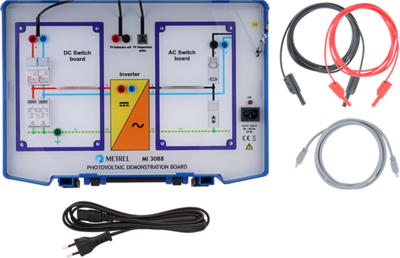

Demonstration board, with a PV module and a DC/AC inverter, CAT II 300 V, METREL MI 3088
Order No.: 27K1308
EAN: 3831063419976
MPN:
MI 3088
20991950
Unit Price (€ / pc.)
1,606.50 € *
Standard delivery time from the manufacturer is: On Request
Demoboard, MI 3088, Metrel
The MI 3088 demonstration board simulates a typical photovoltaic (PV) system with a PV module and DC/AC inverter. It represents a typical installation consisting of PV string, DC control box, DC/AC inverter and single-phase connection to the power grid. It is preferably intended for use by sales personnel to demonstrate the measurement methods and procedures on the DC and partially on the AC side of a PV system.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | demonstration board | |
| Version | with a PV module and a DC/AC inverter | |
| Surge voltage category | CAT II 300 V | |
| Max measured value DC voltage | 115 V | |
| Max measured value AC voltage | 230 V |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | SI |
| MSL | MSL 1 |
| Customs tariff number | 90230010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
