MD 9055 | METREL

Name: TRMS digital multimeter MD 9055, 10 A(DC), 10 A(AC), 1000 VDC, 1000 VAC, 10 nF, CAT III 1000 V, CAT IV 600 V
Brand: METREL
SKU: 27K1387
Price: 380.80 EUR
Availability: OutOfStock

TRMS digital multimeter MD 9055, 10 A(DC), 10 A(AC), 1000 VDC, 1000 VAC, 10 nF, CAT III 1000 V, CAT IV 600 V

Order No.: 27K1387

EAN: 3831063436485

MPN:

MD 9055

20993374

Image may differ

Key Specification:

Version digital multimeter

TRMS possible Yes

max. measured current value (DC) 10 A

max. measured current value (AC) 10 A

max. voltage measuring range (DC) 1000 V

Download Datasheet Technical specifications

Unit Price (€ / pc.)

380.80 € *

Available: 0 pcs.

Leadtime: 2 Weeks **

Add to Cart

Total Price:

380.80 € *

*incl. VAT plus shipping costs

**Subject to prior sale

Description

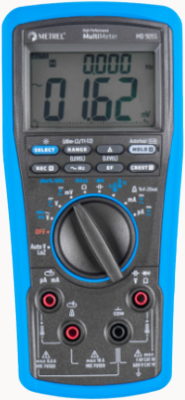

TRMS Digital multimeter, MD 9055, METREL

The MD 9055 is another name for versatility in a small package. It supports a large number of measurements that make it a staple in both industrial and research environments. It has a 60000 counts display and supports a very wide array of measurements, including auto-hold of the measurement for working in confined spaces.

Features

TRMS: accurate readings on sinusoidal and non-sinusoidal signals
Auto-ranging: user can switch between auto and manual ranging
Temperature measurement: measures T1, T2 and T1 + T2 temperature in Celsius and in Fahrenheit
Lead alert: incorrect lead connection alert
dBm measurement results with settable reference value
Auto-hold to freeze the measurement result for comfortable viewing
Relative zero mode: relative function for comparing the difference between signals or removing background noise
MAX/MIN/AVG: recording of maximum, minimum and average values
Backlight: large bright 4 digits 60.000 counts dual LCD display with backlight for working in dark conditions

Applications

Industrial testing at a high level
Detection of electronic faults/span>
Perfect for outdoor use and harsh environments

Technical specifications

	Display Digits	60000
	Version	digital multimeter
	TRMS possible	Yes
	Capacity range	10 nF
	max. measured current value (AC)	10 A
	max. measured current value (DC)	10 A
	max. resistance range	60 MΩ
	max. voltage measuring range (AC)	1000 V
	max. voltage measuring range (DC)	1000 V
	Surge voltage category	CAT III 1000 V, CAT IV 600 V
