STP-CH50 | METCAL

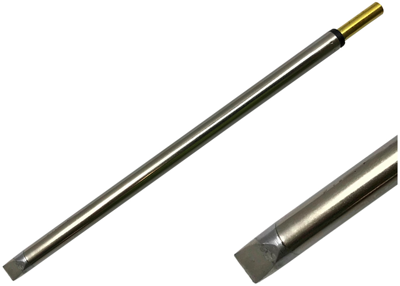

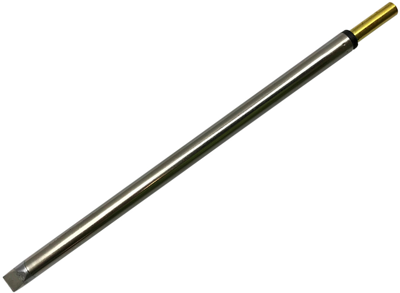

Soldering tip, chisel shaped, (L x W) 7.6 x 5 mm, 330 °C, STP-CH50
Unit Price (€ / pc.)
20.349 € *
Standard delivery time from the manufacturer is: 2 Weeks
Soldering rework tip, STP-CH50, METCAL
Soldering rework tip, Blade, (W x L), 25.0 mm x 9.1 mm.
The STP-CH50 is the standard soldering tip, it can be used with leaded and lead-free solder. It adjusts power levels automatically based on the demand of the application.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| max. operating temperature | 330 °C | |
| Length | 7.6 mm | |
| Width | 5 mm | |
| Peak type | chisel shaped | |
| Suitable for | MFR-1110, MFR-2210/11, MFR-1351, MFR-SRC, solder pen MFR-H1-SC /-SC2, MFR-HSR, solder-kit MFR-UK1 | |
| Version | soldering tip |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | US |
| Customs tariff number | 85151990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
