USF-1000 | METCAL
Solder wire feed, METCAL USF-1000 for soldering station MX-500, MX-5200
Unit Price (€ / pc.)
654.50 € *
Standard delivery time from the manufacturer is: 2 Weeks

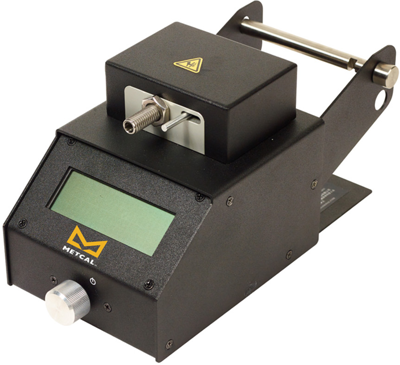

Solder wire feeder, USF-1000, Metcal
Solder wire feeder system adds control and convenience to your soldering process. The digital controls, high performance, and its ability to handle multiple solder wire diameters provide repeatability and functionality to your process. The solder wire feeder pairs with MX-5200 or MX-500 soldering and rework systems.
Features
- Forward Feed, Retraction, Delay, and Speed are programmable parameters in automatic, forward, or backward mode
- Shows program parameters and cycle counter with selectable unit of measure (millimeters or inches)
- Stores internally thirty programs, allowing operator to select the right program for each application
- Prevents unintended changes to stored programs
- Secures solder spool to the unit
- Reduces tendency for solder balls to form at point of use
Ordering information
- Automated solder wire feeder
- Power Supply
Technical specifications
Suitable for | soldering station MX-500, MX-5200 | |
Product type | solder wire feed |
Download
Logistics
Customs tariff number | 85151990 |
Country of origin | CN |
Compliance
RoHS conform | Yes |
Date of RoHS guidelines | 3/31/15 |
SVHC free | Yes |
