100-30TG | METCAL

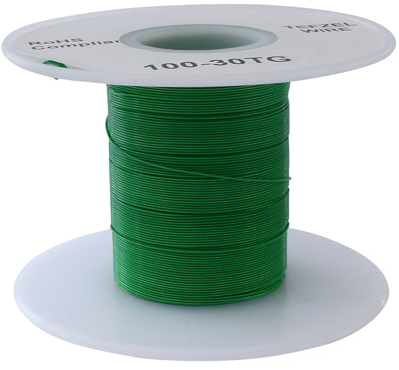

ETFE-wire wrap wire, 0.05 mm², AWG 30, green, outer Ø 0.56 mm, 100-30TG
Order No.: 91F5006
EAN: 4099891168667
MPN:
100-30TG
This item is no longer available.
As an alternative, we recommend the following item:
ETFE-wire wrap wire, 7Y ETFE, 0.05 mm², AWG 30, green, outer Ø 0.58 mm, 370103003
Order No.: 91F8564
Manufacturer: Kabeltronik
per mtr. 0.5117 € *
Insulated wire-wrap hookup wires, type OK 100.
Compliant with VDE 0881
With 0.25 mm wire thickness, AWG 30, type 100-30.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Core insulation material | ETFE | |
| AWG cross-section | AWG 30 | |
| Cable material | copper, tin-plated | |
| Colour | green | |
| Cable cross-section | 0.05 mm² | |
| Temperature range (active) | -90 °C to 150 °C | |
| Rated voltage | 375 V | |
| Conductor category | CL.1 = stranded | |
| Test voltage | 1.5 kV | |
| Outer diameter | 0.56 mm | |
| Product type | wire wrap wire |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85444290 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
