BVX-101 | METCAL
METCAL solder fume extraction BVX101
Unit Price (€ / pc.)
681.87 € *
Available: 1 pcs.

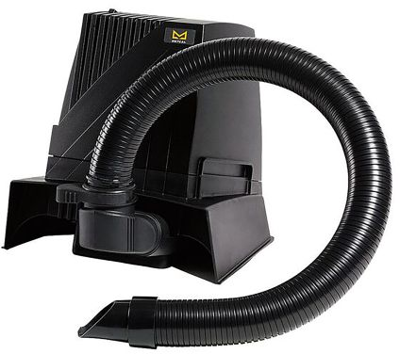

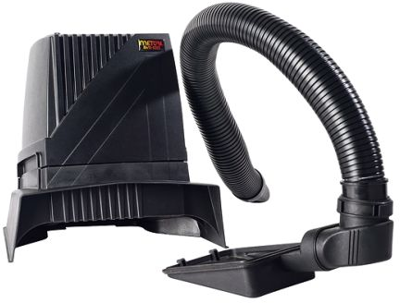

Gas volume extraction system, BVX-101, METCAL

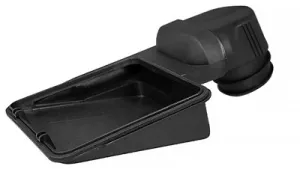

The BVX-101 is a single user, PRE-HEPA-GAS volume extraction system designed to be used directly on the workbench. The unit is designed with an innovative adapter which allows the user to choose between plenum or arm extraction options.
Features
- Portable, single user fume extraction system
- Low noise unit
- Unit easily fits on any bench-top or under-bench
- Two filtration configurations: heavy soldering and light dust or light duty organic solvent and adhesive applications
- Powerful 85m³/hr-airflow rate
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Power | 85 W | |
| Voltage | 110-240 V | |
| Volume flow | 85 m³/h | |
| Sound pressure level | 55 db | |
| Length | 230 mm | |
| Width | 300 mm | |
| Height | 290 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 84213925 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
