BTX-208 | METCAL
METCAL solder fume extraction BTX-208
Unit Price (€ / pc.)
1,216.18 € *
Standard delivery time from the manufacturer is: 2 Weeks

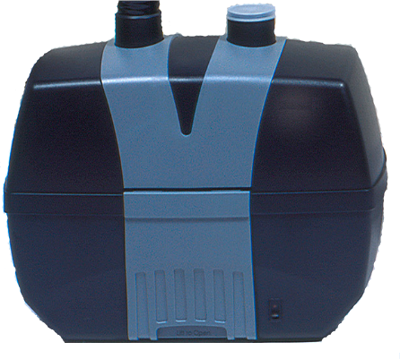

Fume extraction unit, BTX-208, METCAL
The BTX-208 fume extraction.
Features
- High performance extraction directly from the tip of any iron
- Easy extraction network configuration for up to 8 benches

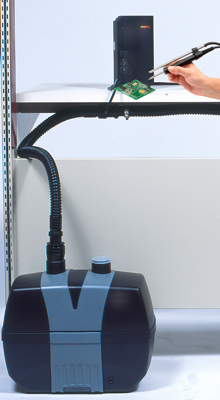

- Complete portability, designed for under-bench installation
- Main filter has a HEPA efficiency of 99.97% at 0.3 micron, and an activated carbon filter to remove additional gases
- Both pre and main filters can be changed independently
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Power | 85 W | |
| Voltage | 100-240 V | |
| Volume flow | 28 m³/h | |
| Sound pressure level | 55 db | |
| Length | 508 mm | |
| Width | 254 mm | |
| Height | 388 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 84213925 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
