X32-12.000-12-30/30/4085 | Mercury

Name: Crystal, 12 MHz, 12 pF, ±30 ppm, 100 Ω, SMD, X32-12.000-12-30/30/4085
Brand: Mercury
SKU: 78D520
Availability: InStock

Crystal, 12 MHz, 12 pF, ±30 ppm, 100 Ω, SMD, X32-12.000-12-30/30/4085

Order No.: 78D520

EAN: 4099879150103

MPN:

X32-12.000-12-30/30/4085

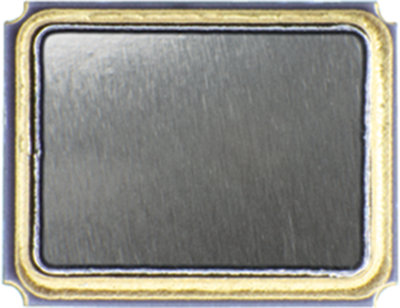

Image may differ

Key Specification:

Frequency 12 MHz

Frequency stability +/-30

Tolerance ±30 ppm

Load Capacity 12 pF

ESR (Equivalent Series Resistance) 100 Ω

Download Datasheet Technical specifications

Unit Price (€ / pc.)

0.4165 € *

Available: 2,115 pcs.

Total Price:

0.42 € *

*incl. VAT plus shipping costs

Subject to prior sale

Description

SMD resonators, type Mercury X32.

With 4 connection pads; Frequency tolerance: ±30 % at +25 °C. Temperature tolerance: ±30 ppm. Load capacitance: 12 pF. Operating temperatures: –40 to +85 °C. Aging: max. ±3.0 ppm/year.

Technical attributes (type, rated frequency, ESR): 12.00000 MHz, 100 ohm

Technical specifications

Filter	Property	Value
	Frequency	12 MHz
	Frequency stability	+/-30
	Tolerance	±30 ppm
	Load Capacity	12 pF
	ESR (Equivalent Series Resistance)	100 Ω
	Assembly	SMD

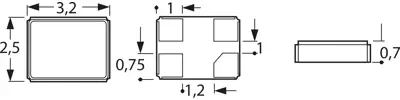

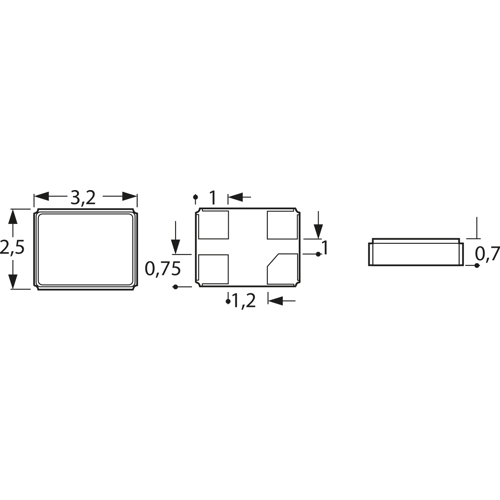

	Length	3.2 mm
	Width	2.5 mm
	Height	0.7 mm
	min. operating temperature	-40 °C
	max. operating temperature	85 °C
	Number of connection pads	4
