MQ-8.000-12-30/30/4085 | Mercury

Name: Crystal, 8 MHz, 12 pF, ±30 ppm, 60 Ω, SMD, MQ-8.000-12-30/30/4085
Brand: Mercury
SKU: 78D481
Availability: InStock

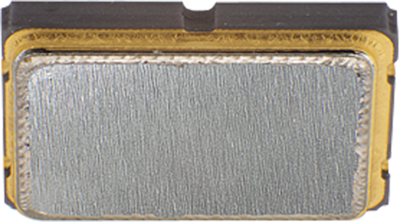

Crystal, 8 MHz, 12 pF, ±30 ppm, 60 Ω, SMD, MQ-8.000-12-30/30/4085

Order No.: 78D481

EAN: 4099879150097

MPN:

MQ-8.000-12-30/30/4085

Image may differ

Key Specification:

Frequency 8 MHz

Frequency stability +/-30

Tolerance ±30 ppm

Load Capacity 12 pF

ESR (Equivalent Series Resistance) 60 Ω

Download Datasheet Technical specifications

Unit Price (€ / pc.)

1.3685 € *

Standard delivery time from the manufacturer is: 11 Weeks

Total Price:

1,368.50 € *

*incl. VAT plus shipping costs

Subject to prior sale

Description

SMD resonators, type Mercury MQ.

With 4 connection pads, gold-plated ceramic base, high degree of impact and vibration resistance; Frequency tolerance: ±30 % at +25 °C. Temperature tolerance: ±30 ppm. Load capacitance: 12 pF. Operating temperatures: –40 to +85 °C. Aging: max. ±3.0 ppm/year.

Technical attributes (type, rated frequency, ESR): 8.000000 MHz, 60 ohm

Technical specifications

Filter	Property	Value
	Frequency	8 MHz
	Frequency stability	+/-30
	Tolerance	±30 ppm
	Load Capacity	12 pF
	ESR (Equivalent Series Resistance)	60 Ω
	Assembly	SMD

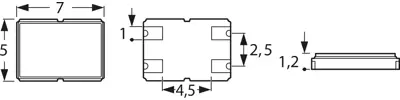

	Length	7 mm
	Width	5 mm
	Height	1.2 mm
	min. operating temperature	-40 °C
	max. operating temperature	85 °C
	Number of connection pads	4
