M49-4.000-18-30/50/4085 | Mercury

Name: Crystal, 4 MHz, 18 pF, ±30 ppm, 120 Ω, SMD, M49-4.000-18-30/50/4085
Brand: Mercury
SKU: 78D452
Availability: InStock

Crystal, 4 MHz, 18 pF, ±30 ppm, 120 Ω, SMD, M49-4.000-18-30/50/4085

Order No.: 78D452

EAN: 4099879150073

MPN:

M49-4.000-18-30/50/4085

Image may differ

Key Specification:

Frequency 4 MHz

Frequency stability +/-50

Tolerance ±30 ppm

Load Capacity 18 pF

ESR (Equivalent Series Resistance) 120 Ω

Download Datasheet Technical specifications

Unit Price (€ / pc.)

0.2094 € *

Standard delivery time from the manufacturer is: 10 Weeks

Total Price:

282.74 € *

*incl. VAT plus shipping costs

Subject to prior sale

Description

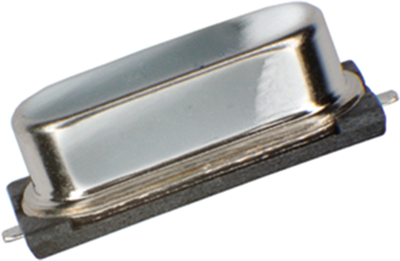

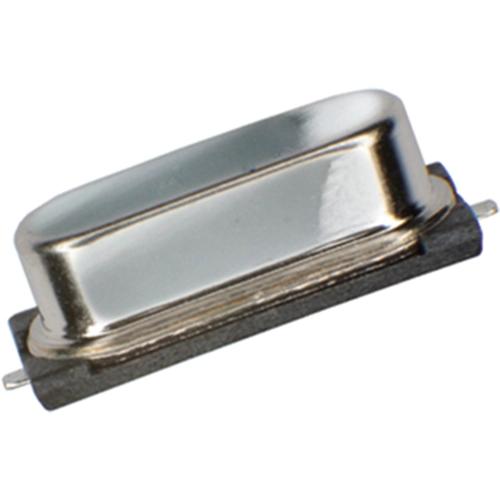

SMD resonators, type Mercury M49.

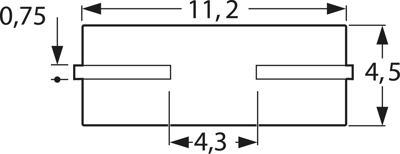

In M49 package; frequency tolerance: ±30 ppm at +25 °C. Temperature stability: ±50 ppm. Load capacitance: 18 pF. Operating temperatures: –40 to 85 °C. Aging: max. ±3.0 ppm/year. Dimensions: 12.4 x 4.5 x 4.0 mm.

Technical attributes (type, rated frequency, ESR): 4.000000 MHz, 120 ohm

Technical specifications

Filter	Property	Value
	Frequency	4 MHz
	Frequency stability	+/-50
	Tolerance	±30 ppm
	Load Capacity	18 pF
	ESR (Equivalent Series Resistance)	120 Ω
	Assembly	SMD
	Length	10.7 mm
	Width	4.5 mm
	Height	13.6 mm
	min. operating temperature	-40 °C
	max. operating temperature	85 °C
	Number of connection pads	2
