HUS-20.000-18-30/50/4085 | Mercury
Crystal, 20 MHz, 18 pF, ±30 ppm, 40 Ω, THT, HUS-20.000-18-30/50/4085
Unit Price (€ / pc.)
0.2951 € *
Standard delivery time from the manufacturer is: 10 Weeks

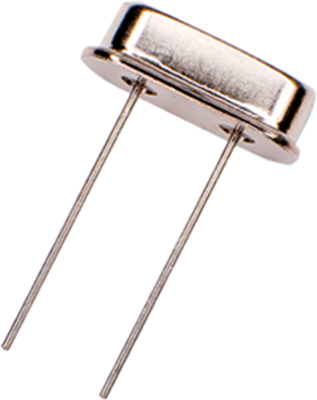

Crystals, type Mercury HUS.
Industrial standard HC49/S; frequency tolerance: ±30 ppm at +25 °C. Temperature stability: ±50 ppm. Load capacitance: 18 pF. Operating temperatures: –40 to +85 °C. Aging: max. ±3.0 ppm in year 1, ±1.0 ppm per year after that.
Technical attributes (type, rated frequency, ESR): 20.00000 MHZ, 40 ohm
Technical specifications
| Filter | Property | Value |
|---|---|---|

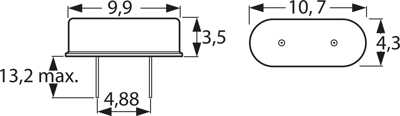

| Height | 3.5 mm | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 85 °C | |
| Assembly | THT | |
| Frequency | 20 MHz | |
| Tolerance | ±30 ppm | |
| Width | 4.3 mm | |
| ESR (Equivalent Series Resistance) | 40 Ω | |
| Length | 10.7 mm | |
| Frequency stability | +/-50 | |
| Load Capacity | 18 pF |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85416000 |
| Country of origin | CN |
| Original Packaging | Bulk with 500 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
