1254.1004 | Mentor

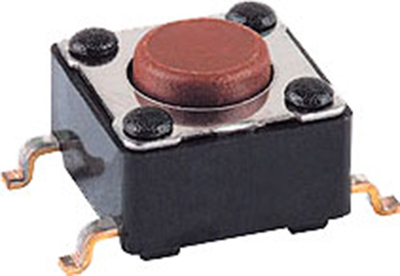

Short-stroke pushbutton, 1 Form A (N/O), 12 V AC/DC, unlit , actuator (brown), 1.6 N, SMD, 1254.1004
Unit Price (€ / pc.)
1.0115 € *
Available: 615 pcs.
Total Price:
10.12 € *
Price list
Quantity
Price per unit*
10 pcs.
1.0115 €
50 pcs.
0.8925 €
250 pcs.
0.7854 €
1000 pcs.
0.6783 €
*incl. VAT plus shipping costs
Subject to prior sale
SMD momentary pushbutton switches, type Mentor 1254.
Usable as single-pole NO; Rated voltage: max. 12 VDC. Switching current: max. 50 mA. Breaking capacity: max. 0.6 VA. Contact resistance: max. 100 mohm. Insulation resistance: min. 100 mohm. Operating temperatures: –25 to +70 °C.
Type: 1254.1004, pushbutton switch with button diameter 3.5, L 0.8 mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Breaking capacity | 12 V AC/DC | |
| Latching switching function | 1 Form A (N/O) | |
| Length | 6.2 mm | |
| actuating force | 1.6 N | |
| Connection | SMD | |
| Width | 6.2 mm | |
| Height | 4.3 mm | |
| Actuator colour | brown | |
| illuminated | No |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TW |
| Customs tariff number | 85365011 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
