1857.1031 | Mentor
Slide switch, On-On, 1 pole, straight, 100 mA/5 VDC, 1857.1031
Unit Price (€ / pc.)
3.7485 € *
Available: 50 pcs.
Total Price:
187.43 € *
Price list
Quantity
Price per unit*
50 pcs.
3.7485 €
100 pcs.
3.5819 €
200 pcs.
3.4272 €
300 pcs.
3.2368 €
400 pcs.
3.0583 €
*incl. VAT plus shipping costs
Subject to prior sale

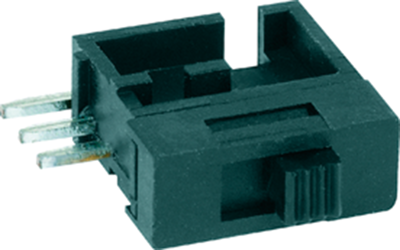

Slide switch, 1857.1031, MENTOR
This 1-pole sliding switch can optimally be stringed according to FEL. A switch version with fixing pin can optionally be carried out.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | slide switch | |
| Shift position | On-On | |
| Pin number | 1 pole | |
| Actuation | in front | |
| Design | straight | |
| Connection | PCB pin | |
| contact surface | tin-plated | |
| Breaking capacity | 100 mA/5 VDC |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365080 |
| Country of origin | TN |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
