Z.2080Y | Mentor

Signal light, yellow, 17 mcd, pitch 2.54 mm, LED number: 8, Z.2080Y

Order No.: 31G7718
EAN: 4099889582048
MPN:
Z.2080Y
Z2080Y
Series: Z.2

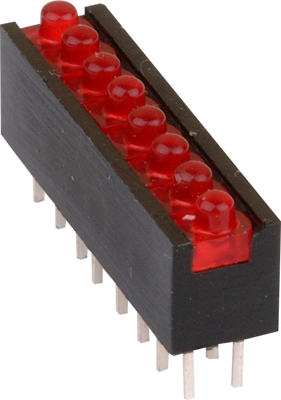

Z.2080Y Mentor Signal Lamps, Indicators, Arrays Image 1

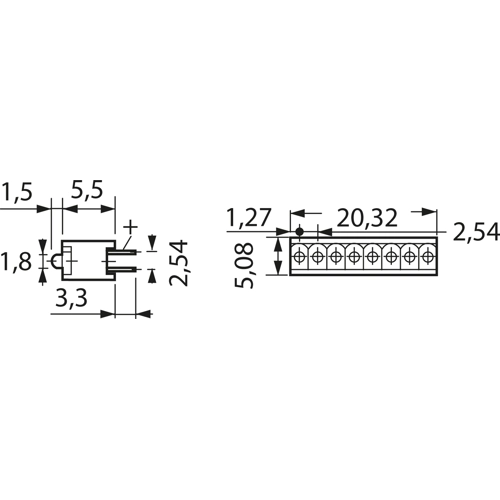

Z.2080Y Mentor Signal Lamps, Indicators, Arrays Image 2
Image may differ
Unit Price (€ / pc.)
5.4621 € *
Available: 121 pcs.
Total Price:
5.46 € *
Price list
Quantity
Price per unit*
1 pcs.
5.4621 €
10 pcs.
4.8195 €
100 pcs.
4.2126 €
250 pcs.
4.0460 €
1000 pcs.
3.7961 €
*incl. VAT plus shipping costs
Subject to prior sale

LED signal lamps, type Mentor RTZ 2040../2080../2100.

Diode diameter: 2.0 mm. Grid: 2.54 mm, Vertical, with 4, 8 or 10 LEDs. Housing material: PC, black. Connections: tinned. Operating temperatures: –40 to +85 °C.

Technical attributes (type, number of LEDs x LED color, on-state voltage (typically) at 20 mA, on-state current (max.), wavelength, luminous intensity (min./typically) at 10 mA): RTZ 2080 Y, 8 x yellow, 2.1 V, 30 mA, 588 nm, 5.0/8.0 mcd

Technical specifications
Filter Property Value
Number of LEDs 8
Diode Diameter 2 mm
Connection PCB connection
Luminous intensity 0.017 cd
Assembly through hole
Grid 2.54 mm
Farbe der Beleuchtung yellow
Rated current 20 mA
Logistics
Property Value
Country of origin TN
Customs tariff number 85414100
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
