E.5104Y | Mentor
Signal light, yellow, 30 mcd, pitch 2.54 mm, LED number: 1, E.5104Y
Unit Price (€ / pc.)
1.0115 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
50.58 € *
Price list
Quantity
Price per unit*
50 pcs.
1.0115 €
100 pcs.
0.9282 €
250 pcs.
0.8806 €
*incl. VAT plus shipping costs
Subject to prior sale

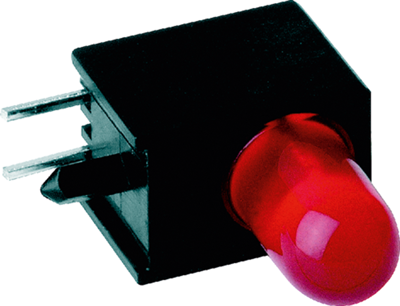

LED signal lamps, type Mentor RTE 5104.
Diode diameter: 5.0 mm. Grid: 2.54 mm. Vertical, with index pin for additional support. Housing material: PBT, black. Connections: tinned. Operating temperatures: –40 to +85 °C.
Technical attributes (type, LED color, on-state voltage (typically) at 20 mA, on-state current (max.), wavelength, luminous intensity (min./max.) at 10 mA): RTE 5104 Y, yellow, 2.1 V, 30 mA, 590 nm, 12/35 mcd
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Number of LEDs | 1 | |
| Diode Diameter | 5 mm | |
| Connection | PCB connection | |
| Luminous intensity | 0.03 cd | |
| Assembly | through hole | |
| Grid | 2.54 mm | |
| Farbe der Beleuchtung | yellow | |
| Rated current | 20 mA |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TN |
| Customs tariff number | 85414100 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
