2692.8371 | Mentor
Signal light, 24 V (DC), yellow, 30 mcd, Mounting Ø 8 mm, pitch 2.54 mm, LED number: 1, 2692.8371
Unit Price (€ / pc.)
8.3657 € *
Standard delivery time from the manufacturer is: 11 Weeks
Total Price:
8.37 € *
Price list
Quantity
Price per unit*
1 pcs.
8.3657 €
10 pcs.
7.3542 €
100 pcs.
6.4498 €
250 pcs.
6.2118 €
1000 pcs.
5.8072 €
*incl. VAT plus shipping costs
Subject to prior sale

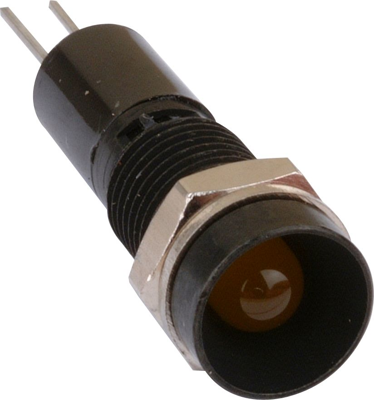

LED signal lamp, 2692.8371, Mentor
Signal lamp for front panel installation is designed for screw mounting with a recommended installation hole of ø 8 mm. The sockets can be supplied with an external or internal reflector. The insert for the LED receptacle is pushed into the case. The signal lamp has an integrated resistor and is designed for nominal voltages of 24V. Supplied with washer and hexagonal nut.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Installation diameter | 8 mm | |
| Grid | 2.54 mm | |
| Diode Diameter | 5 mm | |
| Connection | solder connection | |
| Assembly | central Mounting | |
| Luminous intensity | 0.03 cd | |
| Farbe der Beleuchtung | yellow | |
| Number of LEDs | 1 | |
| Rated voltage (DC) | 24 V | |
| Rated current | 20 mA |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TN |
| Customs tariff number | 85414100 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
