2692.8324 | Mentor
Signal light, round, 2 V, red, 80 mcd, Mounting Ø 9.5 mm, pitch 2.54 mm, LED number: 1, 2692.8324
Order No.: 39G1836
MPN:
2692.8324
26928324
Unit Price (€ / pc.)
4.7005 € *
Standard delivery time from the manufacturer is: 8 Weeks
Total Price:
4.70 € *
Price list
Quantity
Price per unit*
1 pcs.
4.7005 €
10 pcs.
4.4863 €
25 pcs.
4.2840 €
50 pcs.
4.0460 €
100 pcs.
3.8318 €
*incl. VAT plus shipping costs
Subject to prior sale

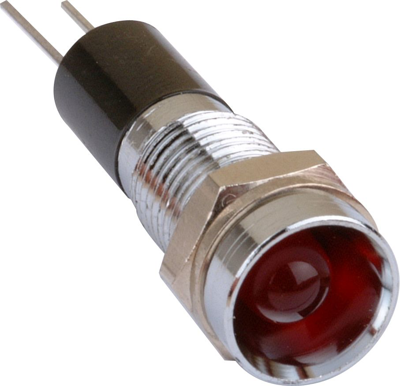

Indicator lamp, 2692.8324, Mentor
The signal lamp for front panel installation is designed for screw mounting with a recommended installation hole of ø 8 mm. The socket can be supplied with an external or internal reflector. The insert for the LED receptacle is pushed into the case. The signal lamp has an integrated resistor and is designed for a nominal voltage of 24 V. Supplied with a washer and a hexagonal nut.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | round | |
| Connection | PCB connection | |
| Diode Diameter | 3 mm | |
| Installation diameter | 9.5 mm | |
| Farbe der Beleuchtung | red | |
| Luminous intensity | 0.08 cd | |
| Assembly | screw mounting | |
| Rated voltage | 2 V | |
| Rated current | 20 mA | |
| Grid | 2.54 mm | |
| Number of LEDs | 1 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85414100 |
| Country of origin | TN |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
